OSE Φ1 Lbms/Lbms-v Yugoslavia 1964

[Andreas]

Andy is still too young, the "other" Andreas is at the proper age

Not funny....

[BarbaPanagos]

We have talked about the brake hut of the Lbms-v at the past, so I (re)post the great Iossif's photo from the Za30x topic http://hellas-express.eu/viewtopic.php? ... 7716#p7716
Just visible at the left is the brake hut, while at the other side of the tender seems to be some pre-war German box car chassis converted to a flatbed...

[TEE1055]

Interesting! What we can found in the background

I have compared the measurements from Rentis with the DB BTmms 58 Model from Brawa. There are some differents in details, but in general the two cars are very similar with no bigger differents in general dimensions, exept the OSE-Wagon has two center bars and the DB-Wagon has only one.
Remove or add some details should not be a problem. As a different, the OSE Car has a brake hut. It looks familiar with the DB-Neubautyp: http://www.modellbahnfrokler.de/grundlagen/bremserhaus.html
That is available by Weinert Modellbau. The DB-hut has no Window in front.
Further, the SEK/OSE pa container, like visible in the picture, has not the same dimensions like the container from Netherland (in 1:87 from Artitec).

[BarbaPanagos]

don't worry boys, we are going to have a proper model soon,
Johannes has measured not only the Φ1 but also the accompanying "loads" during our annual MAI visit

[TEE1055]

So, there the first results:

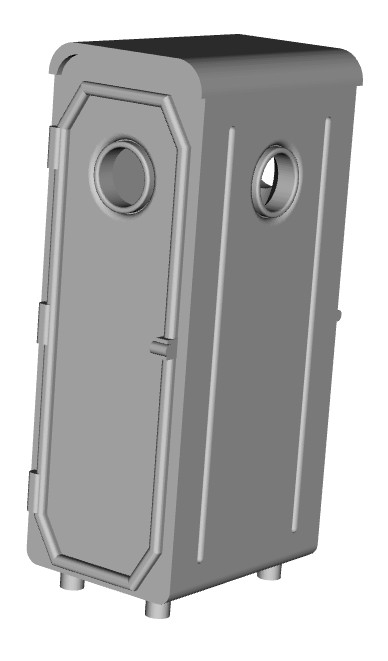

3D-Design render of the brake hut for the Φ1 Lbms pa-container freight car. As an idea, i will create a "transkit" with photoetched parts as wooden floor to cover the different frame constructions for Brawas DB BTmms 58.
Any interestings?

[christo]

Just saw this now. Speaking for myself, I am always interested in new models.

christo.

[BarbaPanagos]

good work for another time Johannes!
we are looking forward to add this model to our collections!


...

[Yiannis]

Hello Johannes,
I am also interested in your "transkit"!

Yiannis.

[TEE1055]

After the brake hut for the Φ1 Lbms car, we should get the right loading...

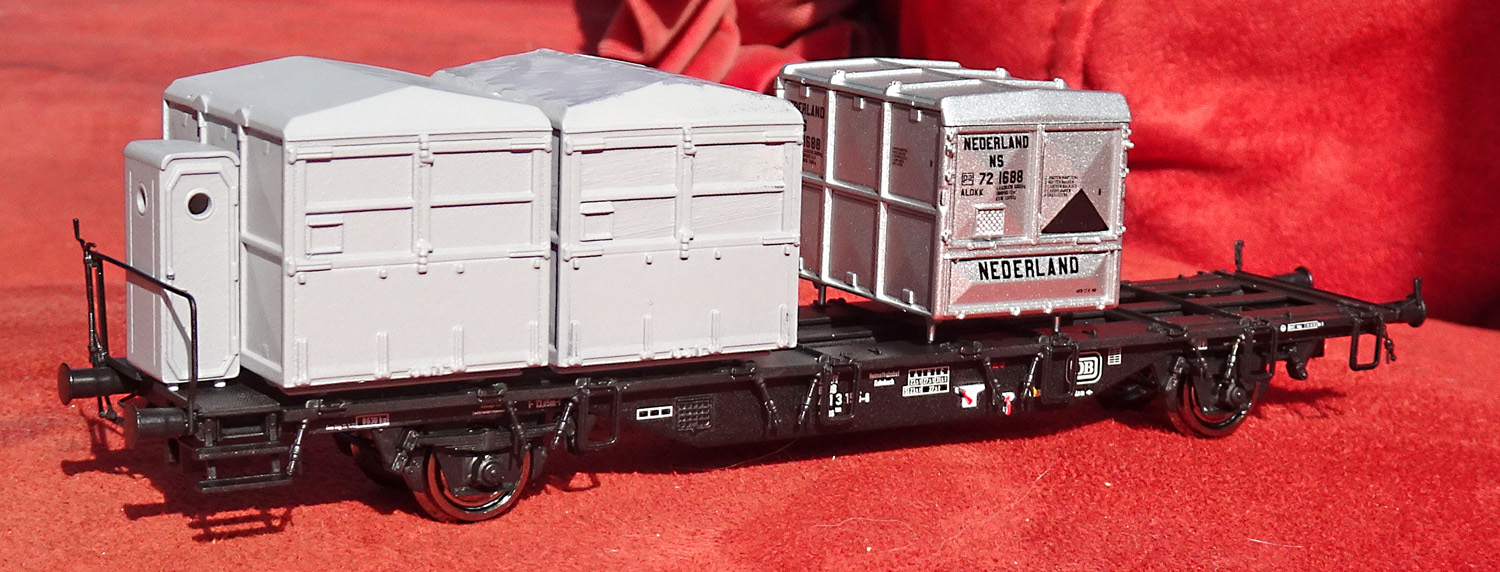

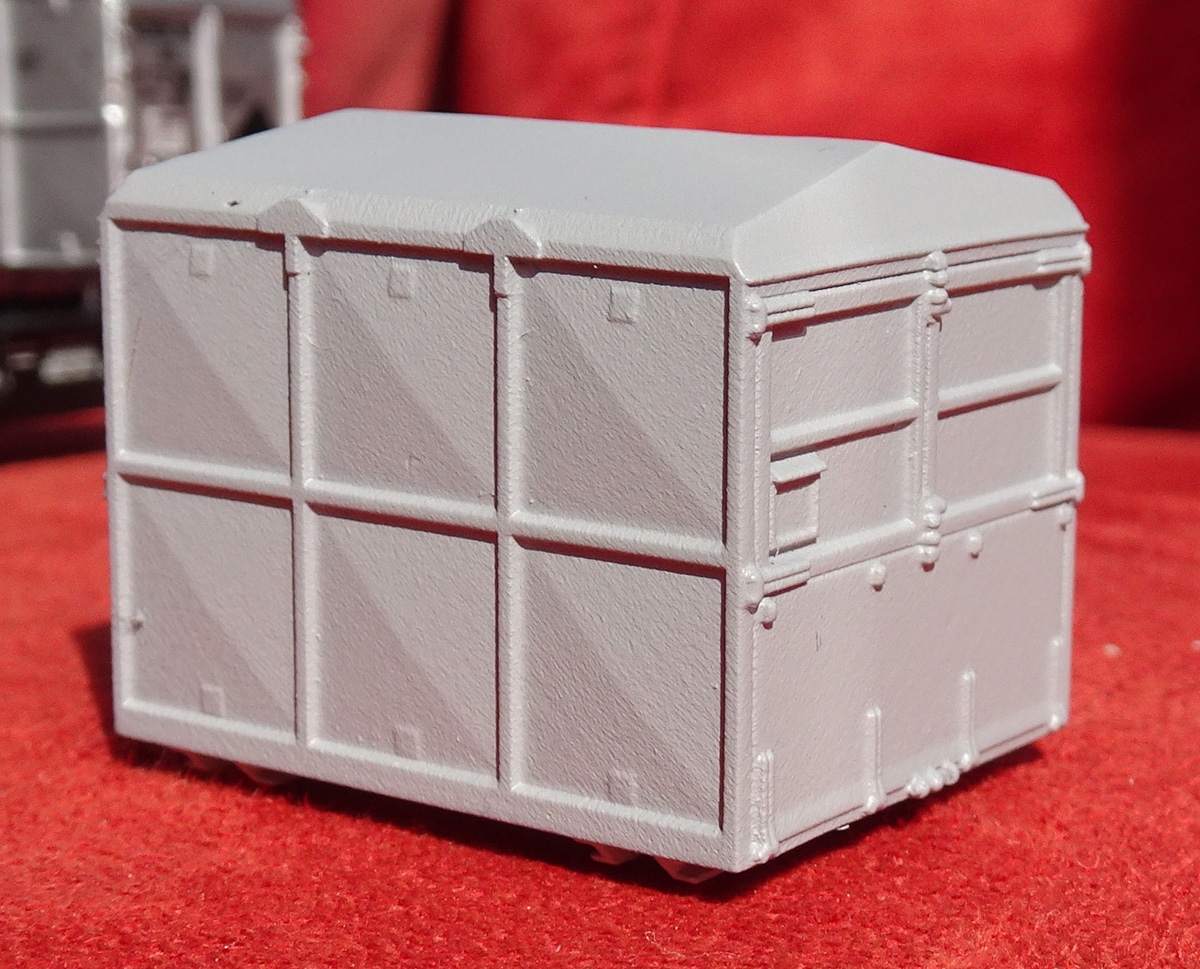

First print samples of the covered pa-container, until today used as storage room on many greek railway stations. Have anyone more informations about these containers?

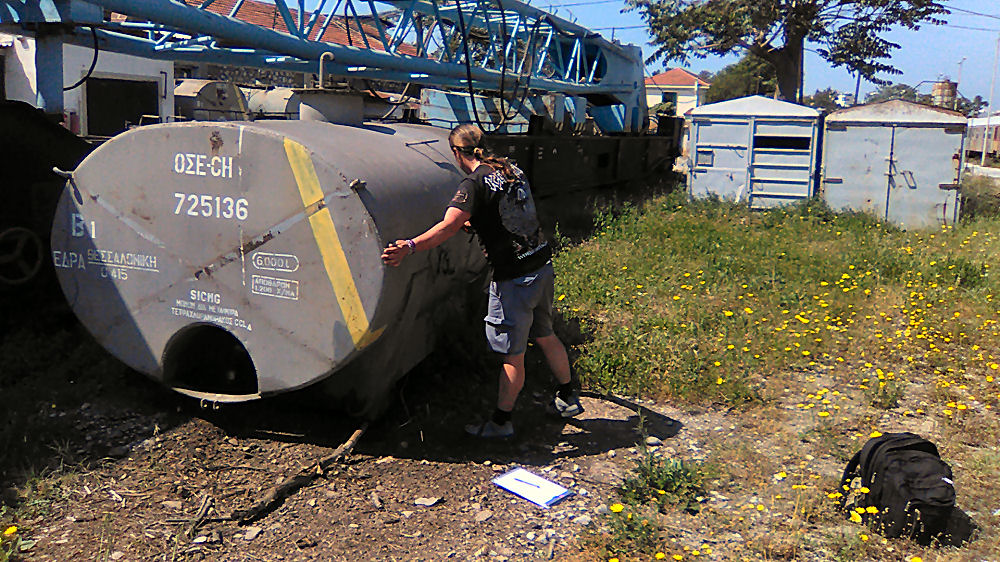

@Barba: While the last meeting, there was not enough time to measure the prototype. So i have get it lather at Afidne with my son.

[BarbaPanagos]

Johannes, I'm more than impressed!!! You have really become the Master of 3D Printing!!!

I'd like to place a couple of questions regarding the "Cigarette" containers
first, it seems that each one of them had been considered as individual "unit" as they bear a serial number and were passing inspection too!
It also seems like they were in use till the mid 80s! does any one knows for sure?

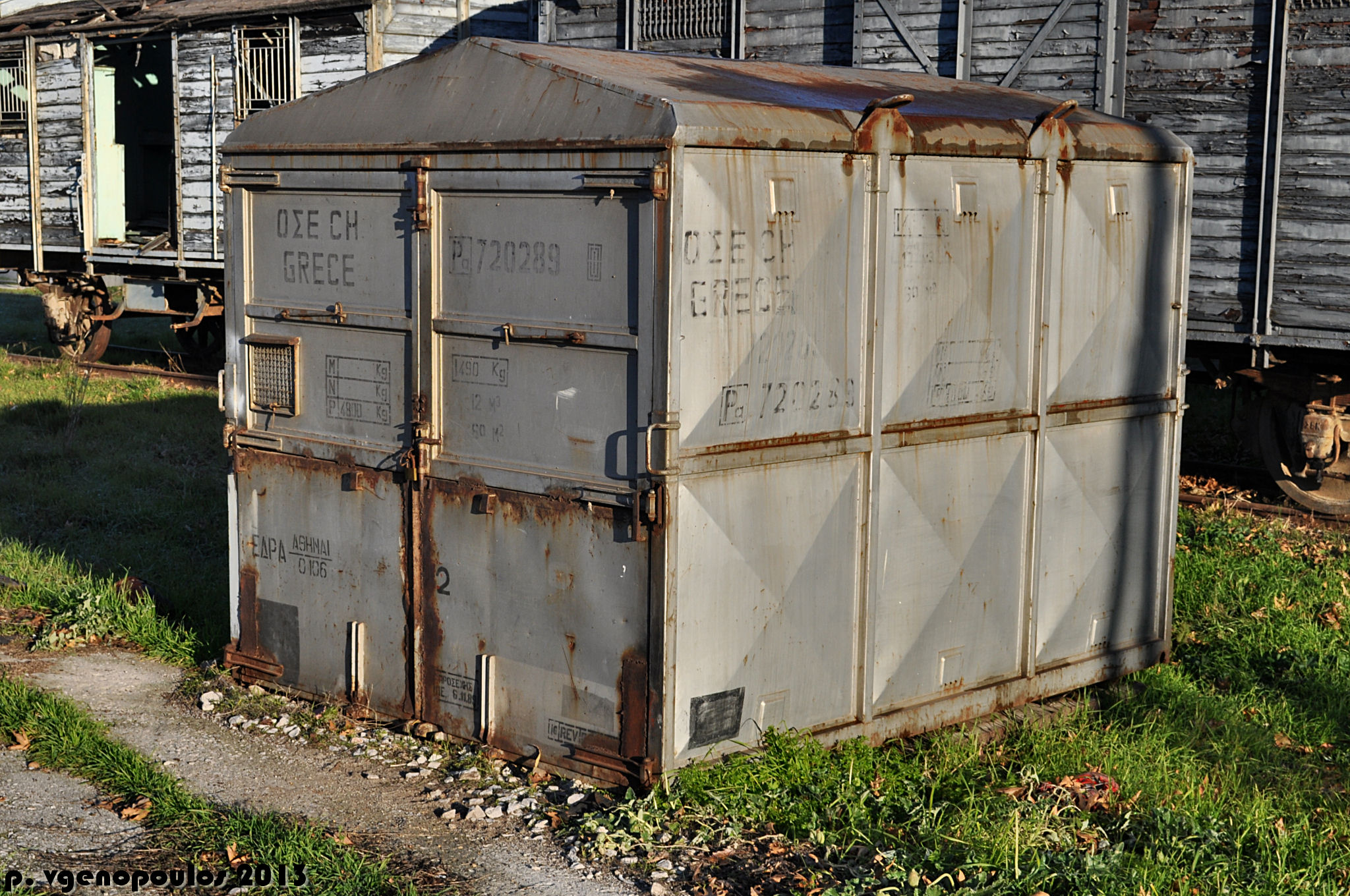

Ρα 720289 was at Lianokladi in 2013, the next inspection date is 6/11/89

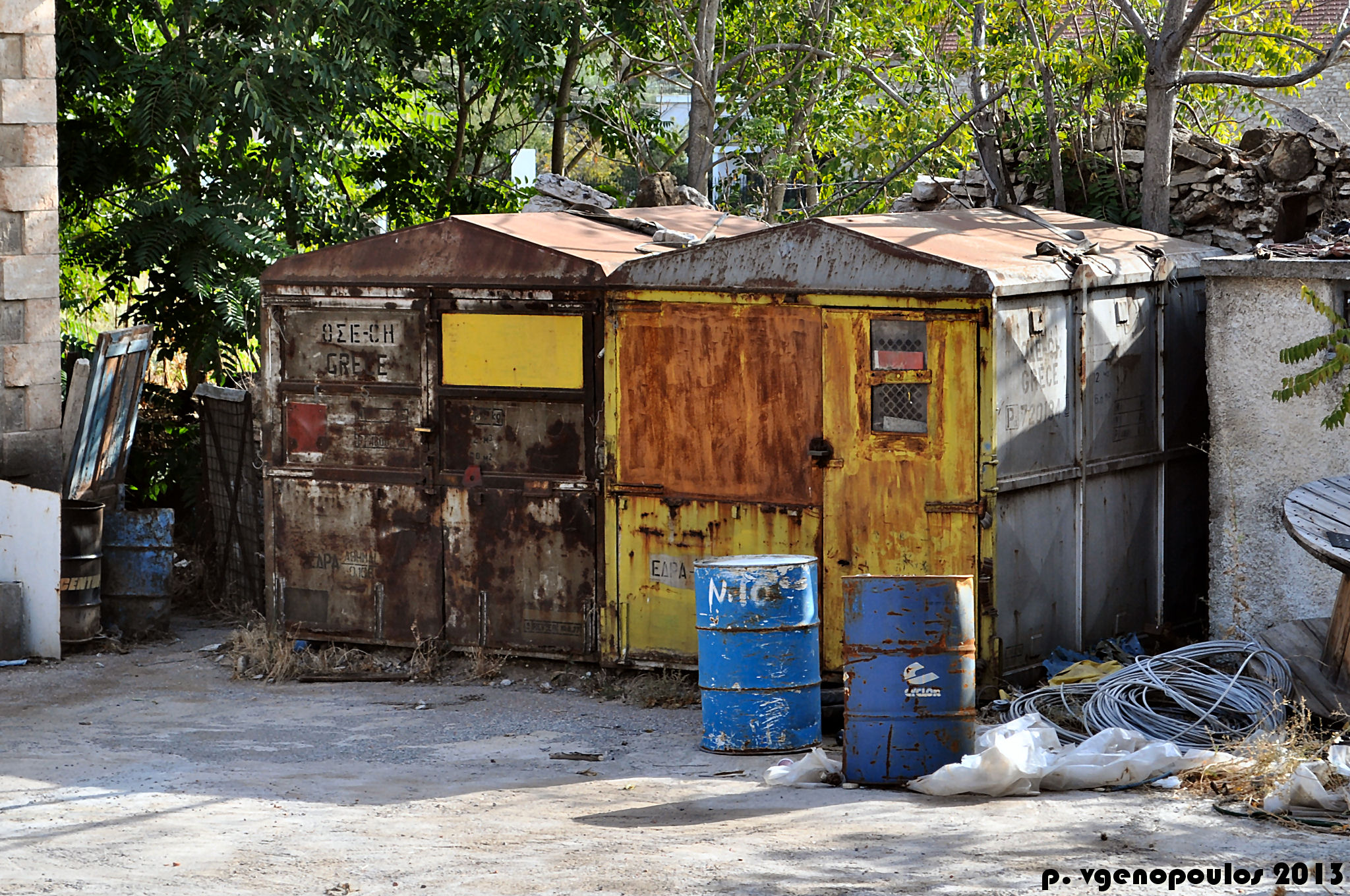

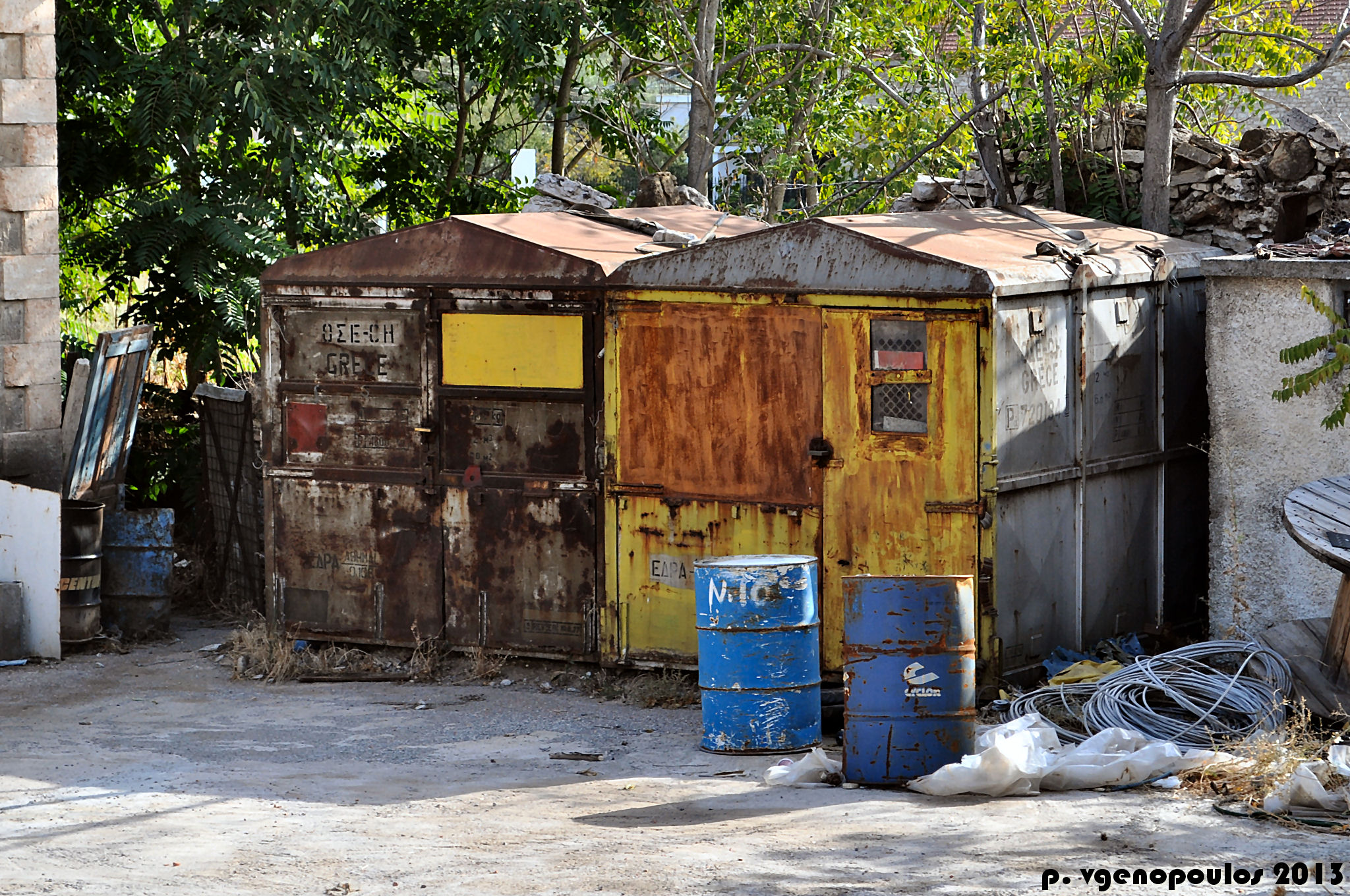

These two are still at Inoi, Ρα 72134 at the left has been modified with front door,
while the one at the left seem to be "original" and the inspection sign is still visible, Piraeus Workshop 10/8/77

...
